Over ISDN

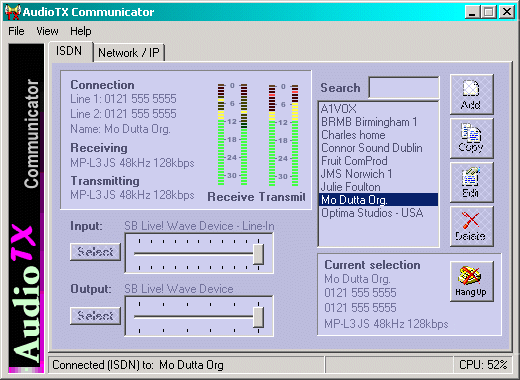

AudioTX Communicator
connects directly to all major ISDN audio codecs - including:
Musicam CDQ Prima, Telos Zephyr, GlenSound, APTx, Dialog, Philips
and most others. With our auto-connect algorithm, AudioTX automatically
detects the type of codec you are connecting to and configures itself.
- 64/128 kbits
connections (1 or 2 b-channels)
- MPEG 2 and
MPEG 3 coding in Mono/Stereo/Joint Stereo modes
- G.722 7.5kHz
speech only
- G.711 3.1kHz
for telephony use/acts as a digital telephone hybrid unit.
- OPTIONAL
Standard & Enhanced APTx.
See the
'Sound and ISDN card info'
section for more on choosing the right hardware... we've designed
Communicator to be compatible with most available cards. |
|
Over the
Internet
AudioTX Communicator
gives you the same live, low delay, reliable connections as you're
used to with ISDN across the Internet. Even higher quality audio
and a Global Phonebook so you just click and connect.
- Lossless
linear PCM audio in Mono or Stereo modes for Studio grade audio
over most normal internet connections
- Uncompressed
linear audio (PCM) in Mono or Stereo modes
- MPEG2 in
Mono/Stereo/Joint Stereo modes at up to 384kbps
- MPEG3 in
Mono/Stereo/Joint Stereo modes at up to 320kbps
- OPTIONAL
Standard & Enhanced APTx at up to 384kbps
Just
click and connect using AudioTX Communicator's Global Phonebook
- no complicated network stuff required!
|
Over ANY IP Network,
including (existing PC networks) or Private wide-area networks
AudioTX Communicator
gives live single or bi-directional audio connections over IP networks.
Communicator is the only available IP codec that offers the same
robust, live high-quality audio over IP as broadcasters have come
to expect over ISDN.
Point-to-point connections between two Communicator systems, or
use our Multicast functionality to send audio to multiple locations
on the network. AudioTX will also run over private leased lines
- either those natively running IP or those using a device which
provides a WAN connection over the circuit.
- Uncompressed
linear audio (PCM) in Mono or Stereo modes
- MPEG2 in
Mono/Stereo/Joint Stereo modes at up to 384kbps
- MPEG3 in
Mono/Stereo/Joint Stereo modes at up to 320kbps
- OPTIONAL
Standard & Enhanced APTx at up to 384kbps
|
Over ATM/Large scale telco networks
AudioTX Communicator
uses the existing networking setup of the PC it runs on for audio
transport, giving you absolute flexibility - so you can use
dedicated or existing network connections in place of current (expensive)
permanent audio circuits. WiFi, Spread spectrum IP radios, ATM,
Sattelite, T1/E1 etc - as long as it presents an IP network connection
capable of carrying TCP packets on the PC.
- Uncompressed
linear audio (PCM) in Mono or Stereo modes
- MPEG2 in
Mono/Stereo/Joint Stereo modes at up to 384kbps
- MPEG3 in
Mono/Stereo/Joint Stereo modes at up to 320kbps
- OPTIONAL
Standard & Enhanced APTx at up to 384kbps
Our
AudioTX STL-IP range - including the amazing new STL-IP Plus
with SureFlow/5 - is also worth a look for these types of
connections.
See www.STL-IP.com |
|
